Product Description

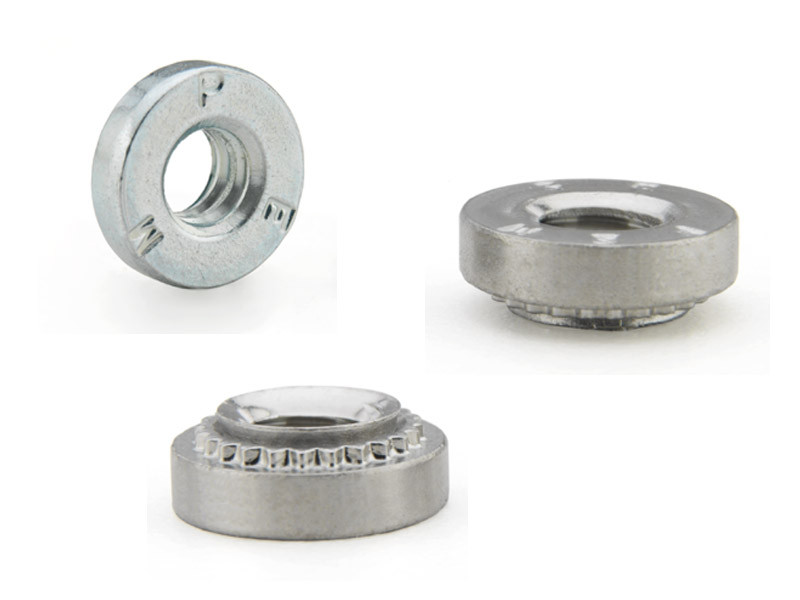

The PennEngineering® (PEM®) CLS-M10-1 is a high-performance self-clinching nut engineered to provide permanent, load-bearing threads in ultra-thin metal sheets. Formed from durable 300 Series Stainless Steel, this fastener offers exceptional corrosion resistance, making it perfectly suited for challenging electronic, automotive, and industrial environments. When squeezed into a properly prepared metric hole, the panel material cold flows directly into the nut's special undercut, locking it cleanly into place. A serrated clinching ring ensures high torque-out and pushout resistance, completely preventing the nut from rotating or loosening during service or final assembly.
High Pushout and Torque-Out Resistance Delivers excellent structural hold and keeps the assembly secure under demanding heavy loads.
Serrated Clinching Ring Anchors the nut into the panel material to absolutely prevent fastener rotation during installation and service.
300 Series Stainless Steel Construction Provides supreme corrosion resistance and reliability for sensitive or cleanroom applications.

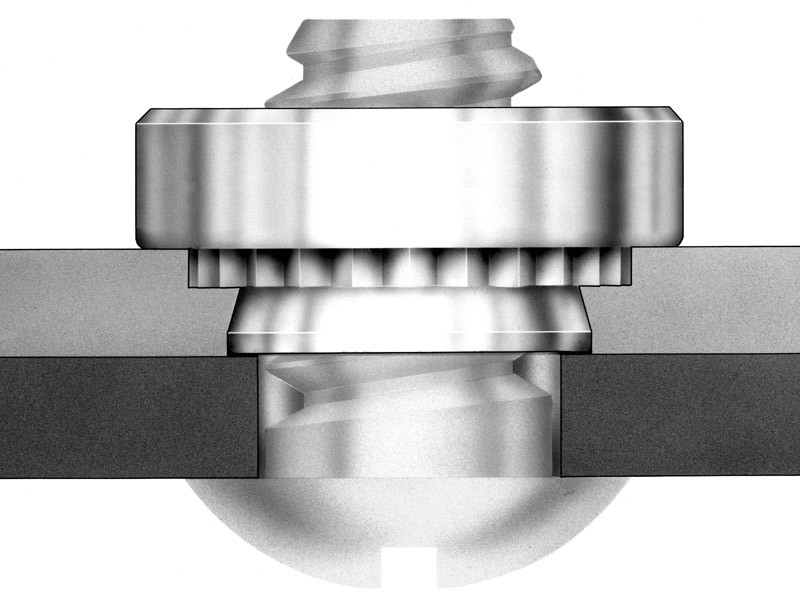

Undercut Panel Interlock Mates the fastener securely to the metal sheet through a clean parallel squeezing force without relying on welding.
Product Specs
- SKU:
- CLS-M10-1
- Part Number:
- CLS-M10-1
- Thread Size:
- M10 x 1.50
- Thread Specification:
- Internal, ASME B1.13M, 6H
- Thread Type:
- Metric
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
- Minimum Sheet Thickness:
- 2.31 mm
- Hole Size in Sheet:
- 14 mm
- Minimum Distance Hole Centerline to Edge:
- 13.5 mm
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
