Product Description

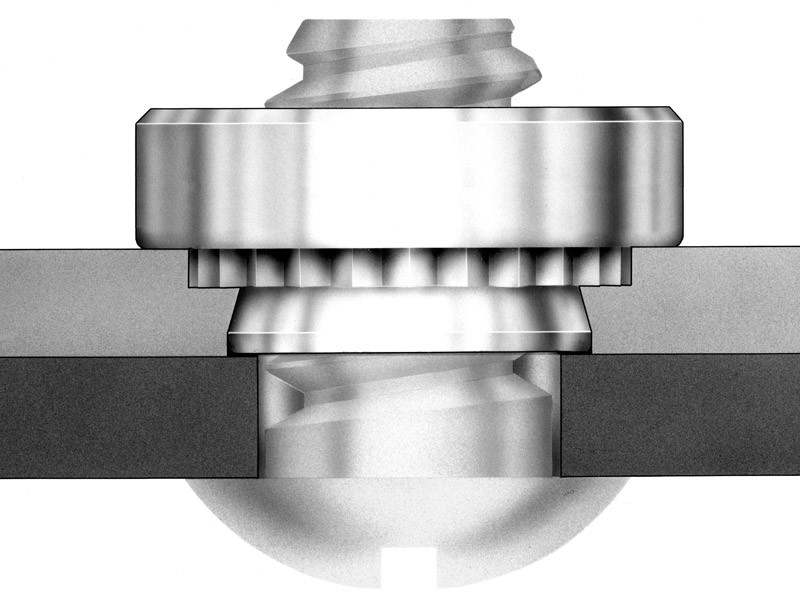

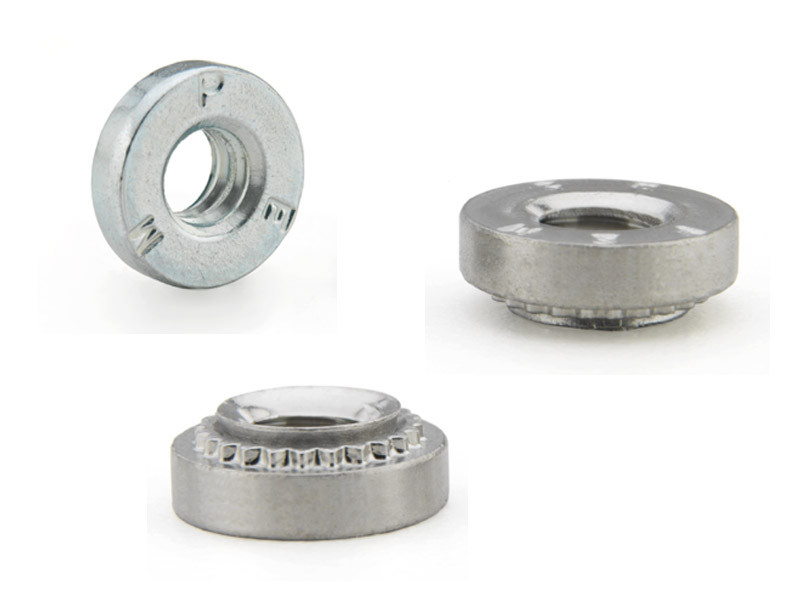

The PennEngineering® (PEM®) CLS-M2.5-0 is a high-precision self-clinching nut designed to provide permanent,load-bearing threads in ultra-thin sheet metals. Fabricated from premium 300 Series Stainless Steel, this fastener delivers excellent corrosion resistance and non-magnetic properties, making it an ideal choice for high-density consumer electronics, aerospace systems, and medical applications. When installed into a properly sized hole via parallel squeezing force, the parent sheet metal cold flows into the nut's special undercut, anchoring the hardware tightly into place as an integral part of the sheet. A specialized serrated clinching ring locks completely into the panel, providing superior pushout and torque-out resistance to prevent rotation or loose hardware during final product assembly.
High Pushout and Torque-Out Resistance Delivers maximum structural joint integrity, remaining permanently locked under torque or axial load forces.
Serrated Clinching Ring Bites securely into the host sheet material during press-in installation to completely eliminate fastener spinning.
300 Series Stainless Steel Composition Offers outstanding rust and corrosion protection, satisfying demanding requirements for clean or harsh operational environments.
Undercut Panel Interlock Captures displaced sheet metal through a clean parallel squeeze to form a uniform, flush permanent assembly without distortion or welding.
Product Specs
- SKU:
- CLS-M2.5-0
- Part Number:
- CLS-M2.5-0
- Thread Size:
- M2.5 x 0.45
- Thread Specification:
- Internal, ASME B1.13M, 6H
- Thread Type:
- Metric
- Fastener Material:
- 300 Series Stainless Steel
- Standard Finish:
- Passivated and/or Tested Per ASTM A380
- Minimum Sheet Thickness:
- 0.8 mm
- Hole Size in Sheet:
- 4.22 mm
- Minimum Distance Hole Centerline to Edge:
- 4.8 mm
- For Use in Sheet Hardness:
- HRB 70 / HB 125 or Less
