Product Description

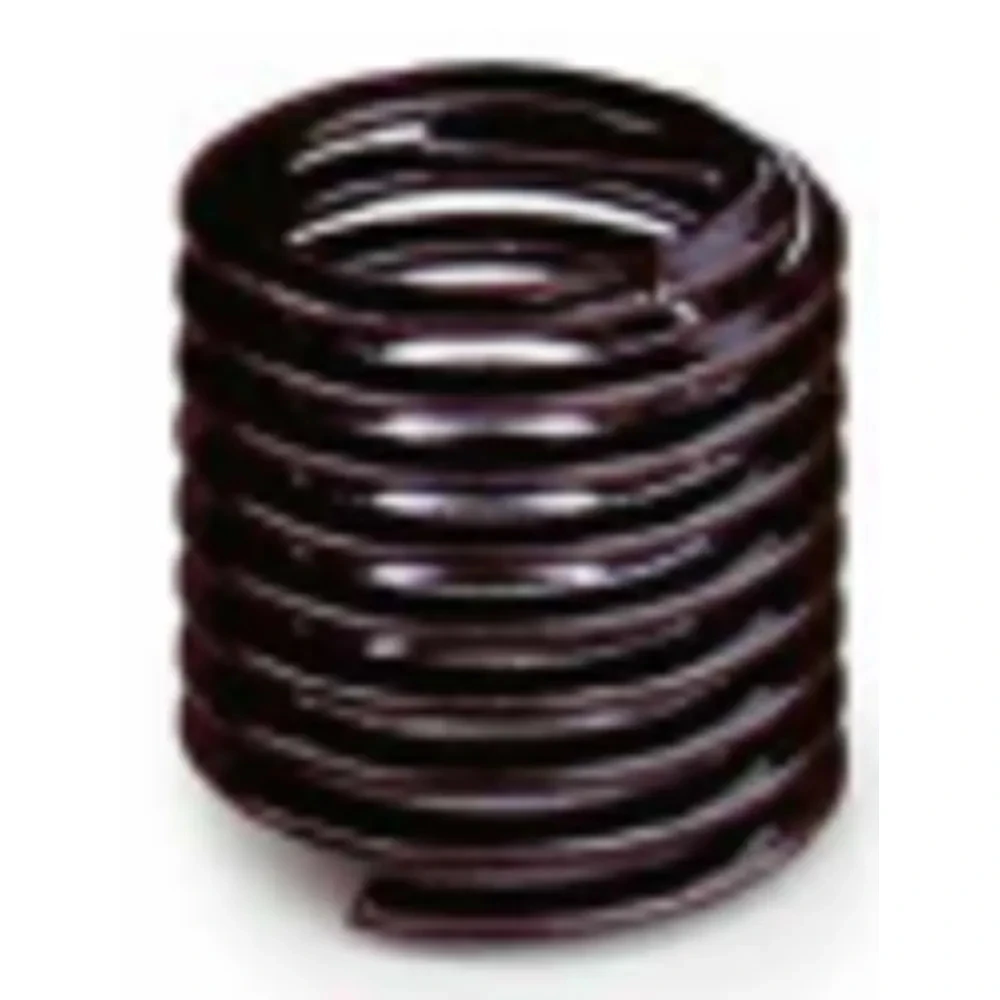

The Heli-Coil® T1185-06CPF138 is a tangless, free-running wire thread insert precision-formed from 304 stainless steel with a Primer Free II coating. Designed to create high-strength #6-32 UNC threads in soft metals such as aluminum and magnesium, its tangless design eliminates the need for tang break-off and retrieval, significantly reducing assembly cycle times and preventing foreign object debris (FOD). The precision helical coil distributes clamping loads evenly, providing exceptional corrosion resistance and protecting tapped holes against thread stripping and galling.
Tangless Wire Construction eliminates tang removal steps, reducing installation time and preventing loose foreign object debris (FOD) risk.
304 Stainless Steel Material provides long-term joint durability, high tensile strength, and superior corrosion resistance.
Primer Free II Coating reduces friction during insertion without requiring additional liquid primers or lubricants.
Free-Running Thread Profile allows standard male fasteners to pass through smoothly without friction locking.
#6-32 UNC Coarse Threading reinforces soft parent metals and repairs worn internal threads in compact assemblies.
Product Specs
- SKU:
- T1185-06CPF138
- Thread Size (Inch):
- #6-32
- Thread:
- UNC
- Overall Insert Length (Decimal Inch):
- 0.138
- Tang:
- Tangless
- Material:
- 304 Stainless Steel
- Number of Free Coils:
- 2-3/4
- Length to Diameter Ratio:
- 1:1
- Coating/Finish:
- Primer Free II
