A4-632-1 - Floating Self-Clinching Nut by PennEngineering ® (PEM ® )

The PEM® A4-632-1 is a high-strength Floating Self-Clinching Nut specifically engineered for installation into stainless steel sheets. As part of the A4™ Series, this fastener provides permanent, load-bearing threads in thin panels where tapping is not structurally viable or practical.

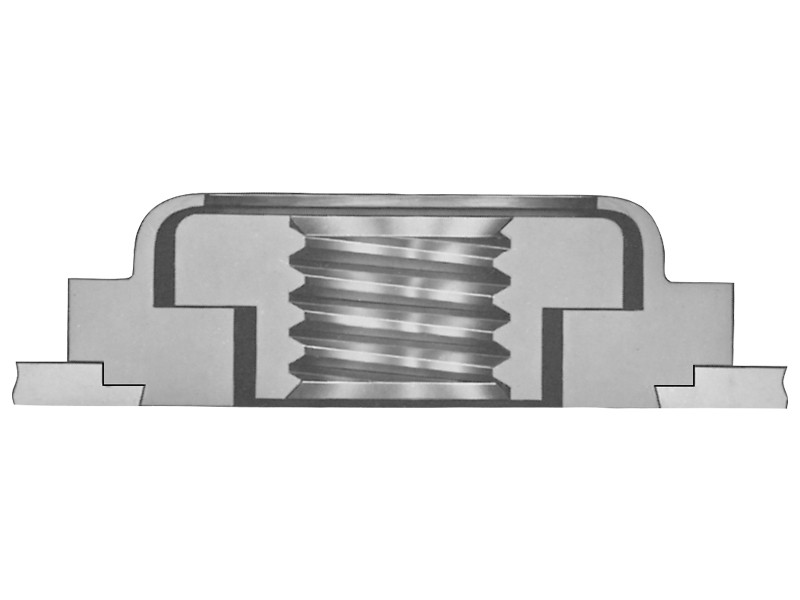

The core advantage of this component is its internal "floating" nut element, which is held captive within a stationary retainer. This design allows for a total float of 0.76 mm (.030 in), providing lateral adjustment to compensate for mating hole misalignment. This capability is essential for complex assemblies where cumulative tolerances or minor hole positioning inaccuracies might otherwise prevent standard fixed fasteners from aligning with mating screws.

Stainless Steel Optimization: Designed to clinch securely into 300 series stainless steel panels, offering high push-out and torque-out resistance in materials that are typically too hard for standard carbon steel fasteners.

Misalignment Compensation: The 0.38 mm (.015 in) radial float from the center allows for easier assembly of mating components and reduces the strict requirement for precise hole-to-hole tolerances.

Corrosion Resistance: The combination of 300 and 400 series stainless steel with a passivated finish ensures long-term reliability in sterile, medical, or outdoor environments.

Permanent Attachment: Once installed using a standard press, the fastener becomes an integral part of the panel, preventing hardware loss during maintenance or under high-vibration conditions.

Common Uses: Frequently specified for medical diagnostic equipment, food processing machinery, laboratory instruments, and marine-grade electronic enclosures.

NASM - Products meet Military Specifications (MS) and National Aerospace Standards (NAS) requirements as applicable and are shipped with appropriate documentation.
