Product Description

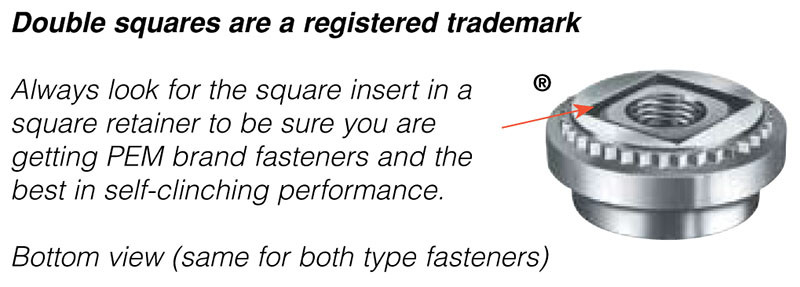

The S-632-1ZI is a heat-treated carbon steel fastener designed to become a permanent part of the host assembly. It is installed by placing it into a properly sized punched or drilled round hole and applying a parallel squeezing force. This action causes the host metal to cold-flow into a specially designed undercut around the shank of the nut, locking it securely in place.
Reliable Attachment: Provides significantly higher pushout and torque-out resistance than tapped threads or extruded sheet metal.
Streamlined Assembly: Eliminates the need for secondary processes like welding or the use of lock washers and loose nuts in hard-to-reach areas.
Flush Profile: The fastener sits flush with the sheet on the installation side, preserving the clean lines of the exterior chassis or panel.
Versatile Application: Suitable for use in a wide range of steel and aluminum alloys within the specified hardness range.
Product Specs
- SKU:
- AS-632-1ZI
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- S-632-1ZI
- Thread Size:
- #6-32 (.138-32)
- Thread Type:
- Unified (UNC), Internal, 2B per ASME B1.1
- Material:
- Heat-Treated Carbon Steel
- Finish:
- Zinc plated, clear chromate (ZI)
- Material Code:
- S
- Shank Code:
- 1
