Product Description

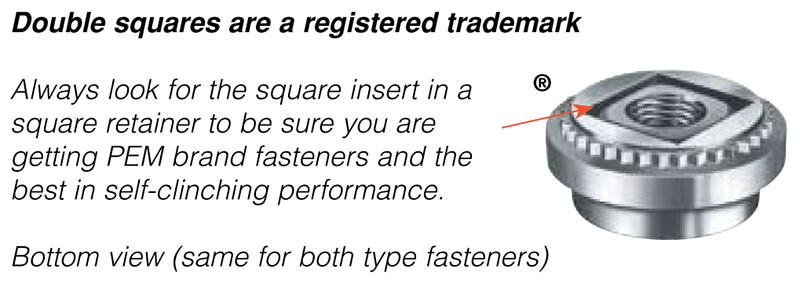

The AS-M3-1ZI features a two-piece captive design: a threaded nut element held within a stationary outer retainer. This configuration allows the internal nut to "float" a total of 0.76 mm (moving 0.38 mm in any direction from the center). This float is a critical feature for simplifying the assembly of components where precise hole alignment between multiple parts is difficult to maintain.
Misalignment Compensation: The 0.76 mm total float reduces assembly time and prevents part damage caused by forced alignment of mismatched holes.
Captive Hardware: The nut remains trapped within the retainer after installation, ensuring no loose hardware can fall into sensitive electronic or mechanical systems.
High Performance: Provides significantly higher torque-out and pushout resistance compared to standard tapped holes in thin sheets.
Flush Profile: The reverse side of the panel remains completely flush after installation, maintaining clean exterior aesthetics and allowing for tight-fitting mating components.
Product Specs
- SKU:
- AS-M3-1ZI
- Manufacturer:
- PennEngineering® (PEM®)
- Part Number:
- AS-M3-1ZI
- Thread Size:
- M3 x 0.5
- Thread Type:
- Metric Internal, 6H per ANSI/ASME B1.13M
- Material:
- Heat-Treated Carbon Steel
- Finish:
- Zinc plated, clear chromate (ZI)
- Shank Code:
- 1
- Total Float:
- 0.76 mm
